If you are offering CATV

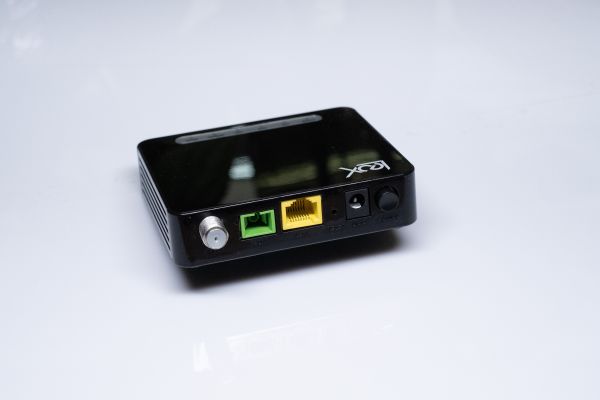

To deliver triple-play services to the subscriber in FTTH or FTTP application, LEOX LXT-011G-E features interoperability with most of OLT vendors, reliability, cost-efficiency and key customer specific requirements.
Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface, LEOX LXT-011G-E supports the full Triple Play of services (high speed internet access, video and voice).
Compliant with standard OMCI definition, LEOX LXT-011G-E is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
- Dimensions: 95 x 80 x 21mm
- Power supply - 12V, 1A
- Layer 2
- 1 GPON (SC/APC) connector
- 1 GE Ethernet port and 1 CATV/RF port
- IGMP v2/v3 snooping
- VLAN stacking (Q-in-Q), translation and tagging per Ethernet port
- Management 100% through OMCI
- Interoperability with following OLT vendors:
- Huawei
- Dasan
- ZTE
- Zhone
- Calix E7
- Nokia/Alcatel-Lucent
- V-SOL(Uplink)
- BDCOM
- Ericsson BLM1500
- Raisecom
- Your Vendor is not included? Just let us know and we will see what we can do!
For inquiries - contact sales@leolabs.pl
Latest firmware version: V3.3.5L7 - available from support@leolabs.pl
Caution - mind that any modification of device with "flash set" commands might cause warranty loss - it's modification, not configuration!
